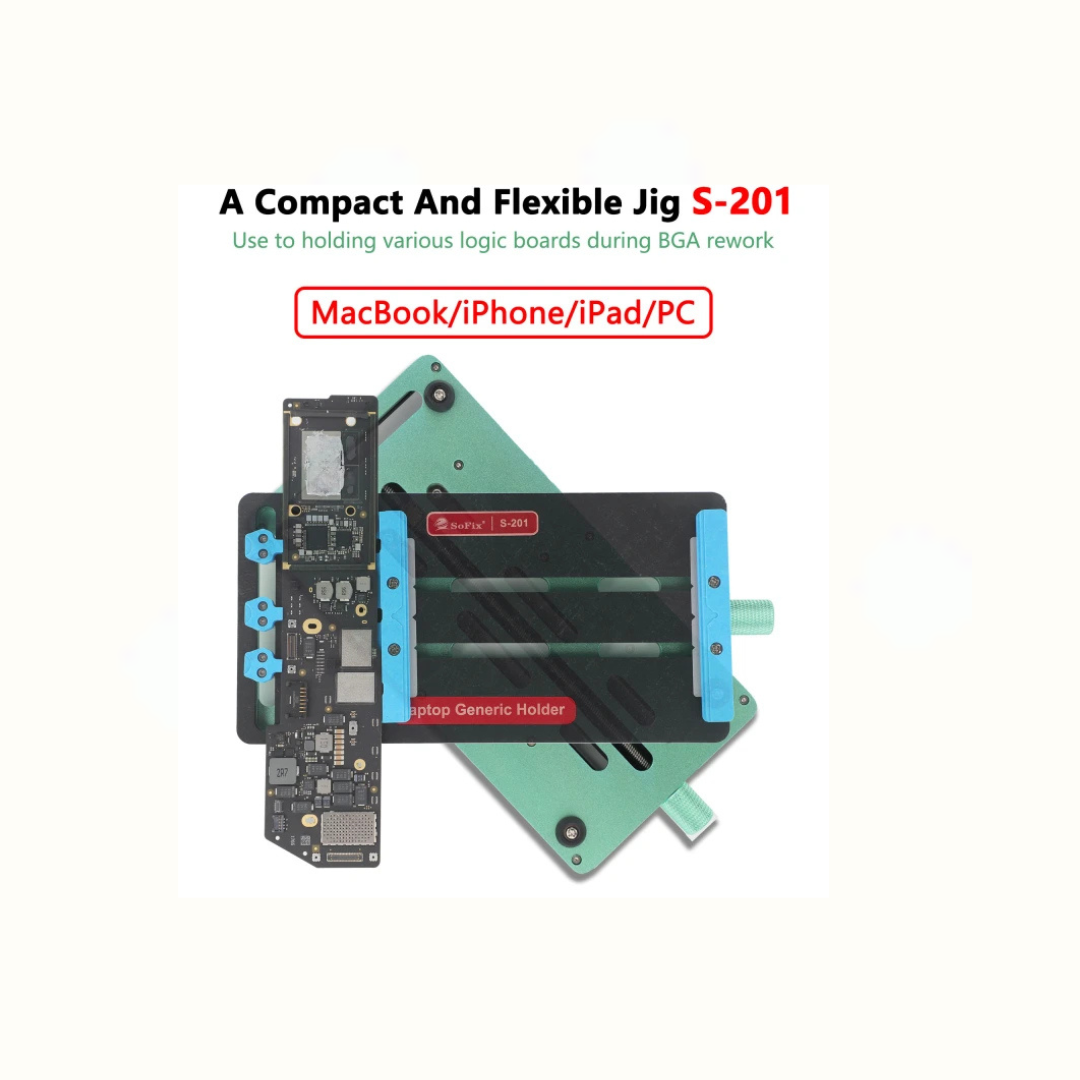

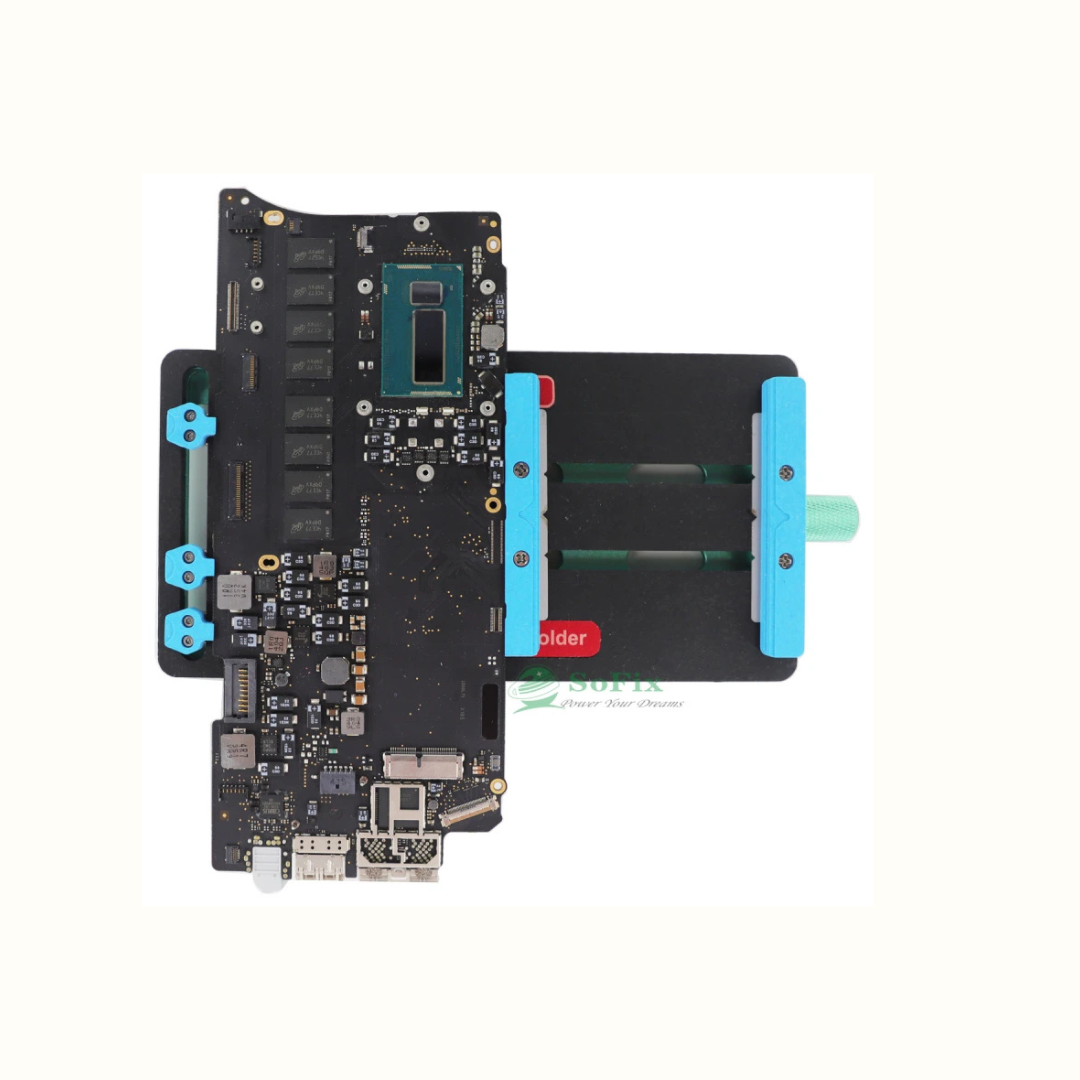

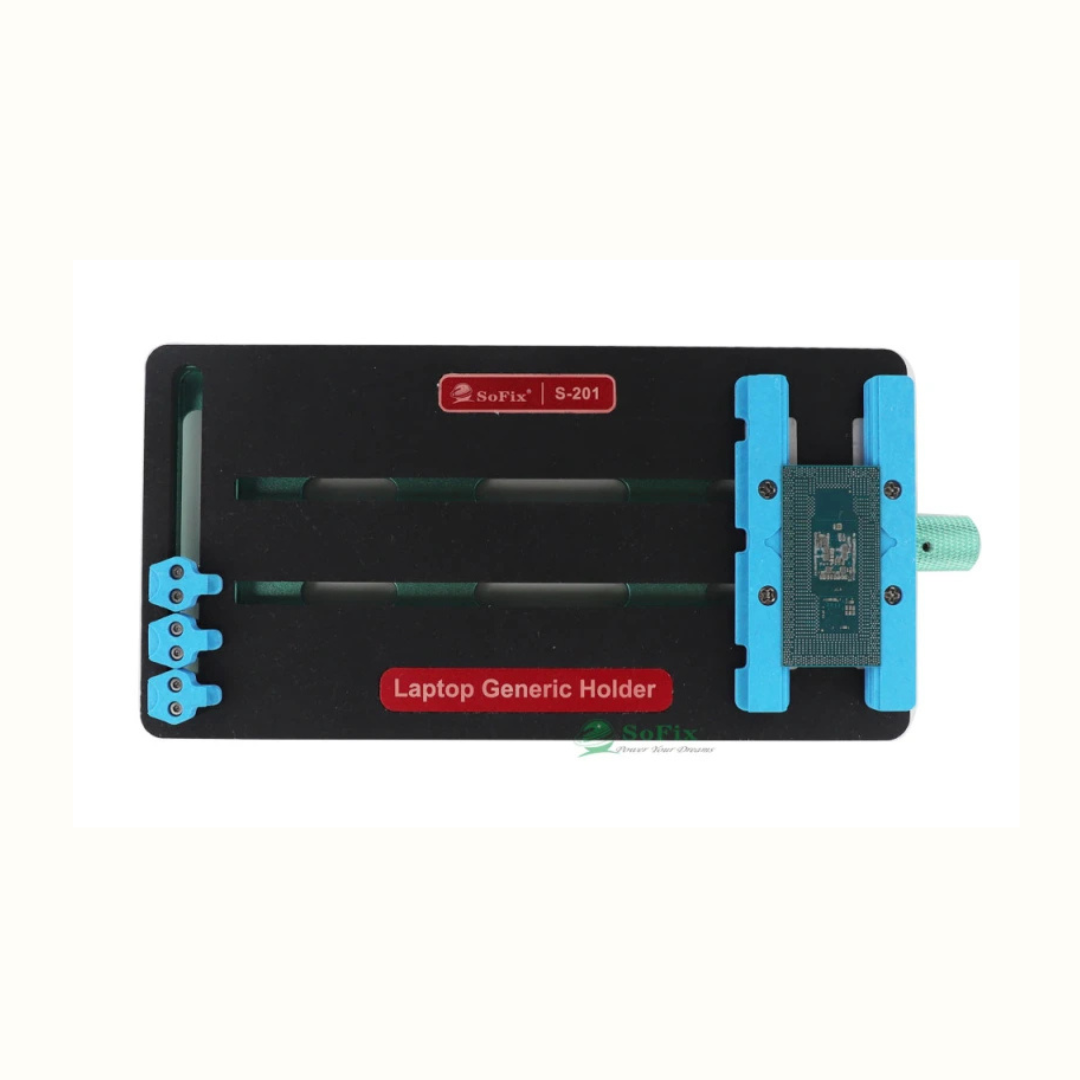

S-201 Generic Logic Board Holder – Precision and Stability for Device Repairs

S-201 Generic Logic Board Holder – Precision and Stability for Device Repairs

The S-201 Generic Logic Board Holder is a versatile and indispensable tool for technicians and DIY enthusiasts working on the repair and maintenance of logic boards. Designed to provide optimal stability and flexibility, this fixture makes handling delicate components during BGA rework, glue removal, tin application, and intricate repairs safer and more efficient.

Key Features and Applications:

1. Versatile Compatibility:
   The S-201 Logic Board Holder is engineered to securely hold a wide range of logic boards, making it suitable for:

   • Mac Devices: Compatible with MacBook Air, MacBook Pro, iMac, and Mac mini logic boards, allowing precise positioning during component rework and soldering tasks.
   • Apple Mobile Devices: Holds iPhone and iPad logic boards for delicate operations such as glue and tin removal.
   • Microsoft Devices: Supports logic boards from Surface Pro, Surface Laptop, Surface Book, and Surface Go, providing the necessary stability for detailed repairs.
   • Android Devices: Compatible with various Android phone brands including Huawei, Samsung, Xiaomi, OPPO, vivo, and more, making it a universal tool for mobile device repair.

2. Precision BGA Rework and Component Removal:
   The S-201 Holder provides a stable and compact platform that makes reworking BGA chips safer and more precise. It keeps the logic board steady during sensitive procedures such as soldering, chip replacement, glue removal, and tin application, minimizing the risk of damage and ensuring consistent results.

3. Compact and Flexible Design:
   This holder features a compact structure that easily fits on repair benches, while its flexible configuration allows for quick adjustments to accommodate different board sizes and shapes. Its compact form factor ensures that technicians can work comfortably without compromising on stability.

4. Secure Fixture for Glue and Tin Removal:
   The S-201 Holder simplifies the process of removing glue and tin from logic board components, enhancing safety and control. By providing a firm hold, it helps prevent accidental slips or board damage during high-precision repair tasks.

5. User-Friendly Operation:
   Designed with ease of use in mind, the S-201 Holder allows technicians to quickly secure and release logic boards, streamlining the repair process. This makes it an ideal tool for high-volume repair operations as well as individual DIY repairs.

Why Choose the S-201 Generic Logic Board Holder?

• Professional-Grade Precision: Whether you’re reworking a BGA chip on a MacBook or repairing the logic board of an Android phone, this holder ensures maximum precision by holding the board steady at all times.
• Multi-Device Compatibility: Save time and resources with one tool that fits a variety of logic boards across different devices.
• Durability and Stability: Built from high-quality materials, the S-201 Holder is designed to withstand the rigors of repeated use while maintaining stability and reliability for intricate repairs.
• Enhanced Safety: By securing the logic board in place, this fixture reduces the risk of accidental damage, offering peace of mind during complex repair processes.

Ideal for:

• Repair Technicians working on Apple, Microsoft, and Android devices.
• DIY Enthusiasts handling intricate repair projects at home.
• Electronics Repair Shops looking for efficient solutions to stabilize logic boards during rework.
